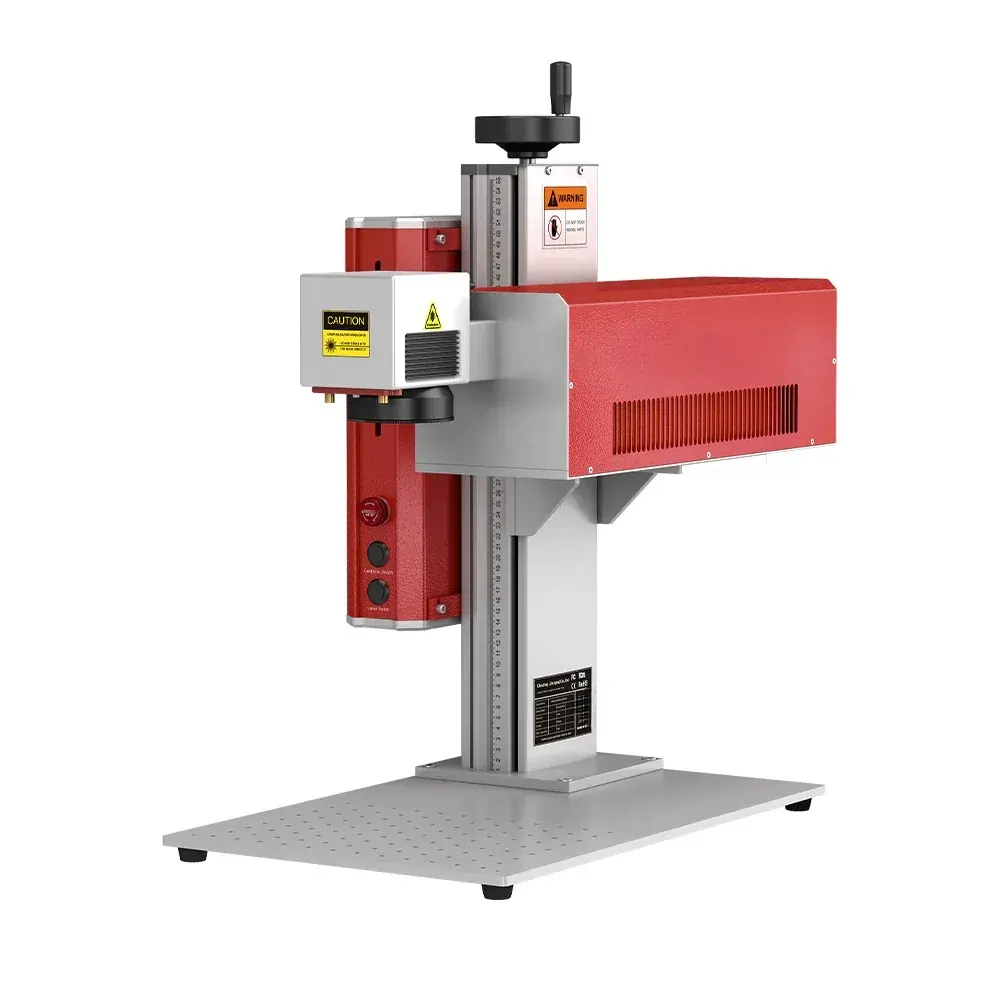

LazerKart UV-5 5W UV Laser Marking Engraver with 4.3” X 4.3” Scan Area

Name: LazerKart UV-5 5W UV Laser Marking Engraver with 4.3” X 4.3” Scan Area
SKU: LKUV01
Availability: InStock

SKU: LKUV01

Lazerkart Shopping Event

Hurry and get discounts on all Laser Solution Accesories up to 20%

Coupon Code: LAZER20SAVE

₹ 682,852.29

Add to compare

Add to wishlist

18 People watching this product now!

Courier delivery

Our courier will deliver to the specified address

2-3 Days

Free

DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

Free

Warranty 1 year

More details

Free 30-Day returns

More details

Payment Methods:

Description

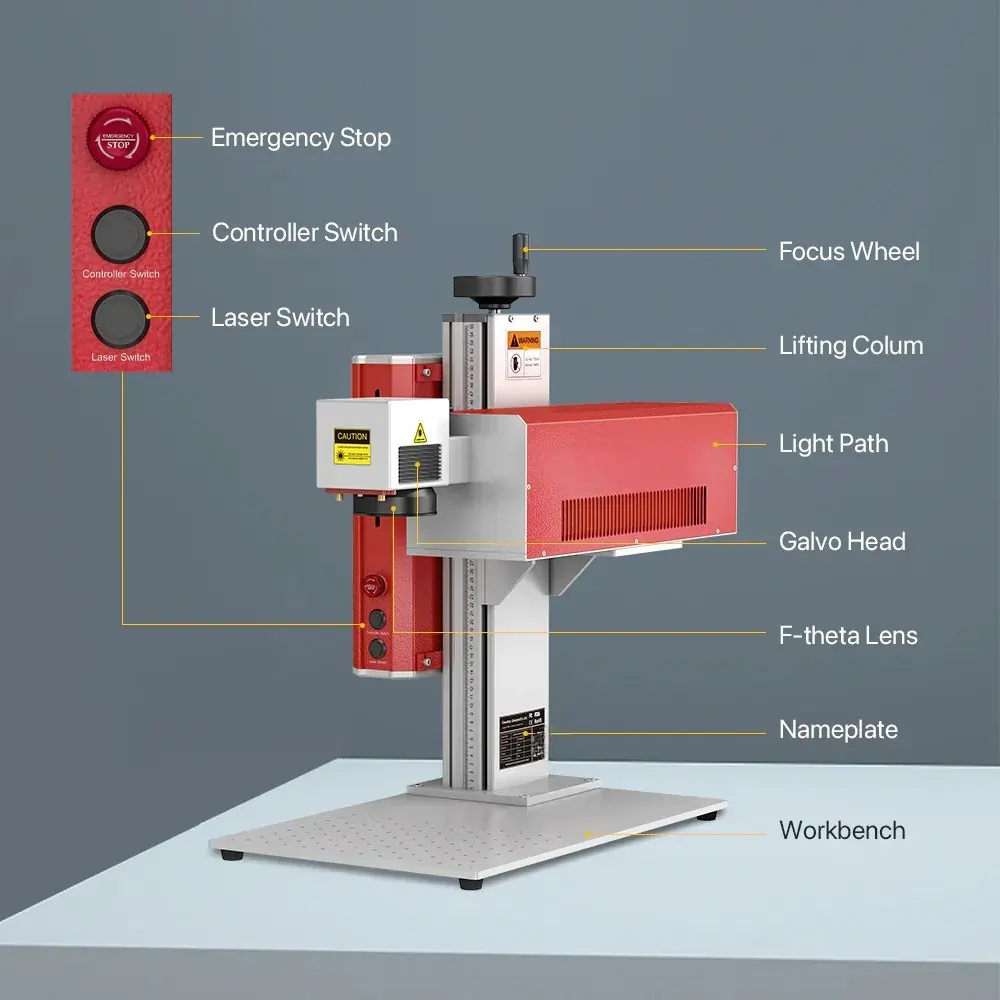

Machine Features & Benefits

Ultra-thin chassis, wall-mounted design;
Built-in high-speed marking laser motion control system;
Ultra-fine engraving and marking of special materials;
Cold laser processing has lower thermal stress and reduces material burning;

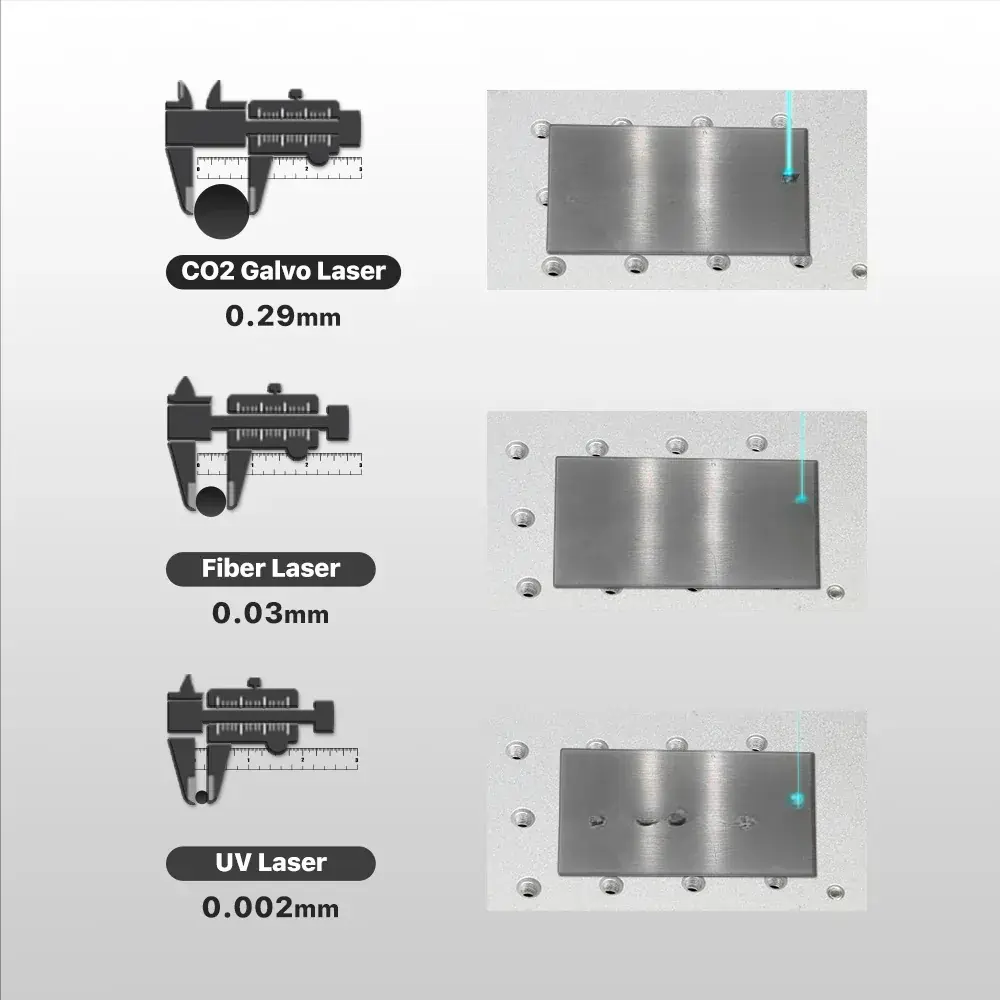

Higher quality beam, smaller focusing spot, achieving hyperfine marking;
Air-cooled structure, intelligent speed regulation
Unique Low-Power Laser Beam and Smaller Focusing Spot, No Thermal Effect, Prevent Material Deformation, Damage or Scorching.
Notification: Due to the special nature of the laser, the UV laser machine only provides a one-year warranty.

Laser Machine Specification

Brand: Cloudray
Product Series: UV Series
Model: UV-5 (Air-cooled)
Marking Area(Lens): 110 x 110 mm

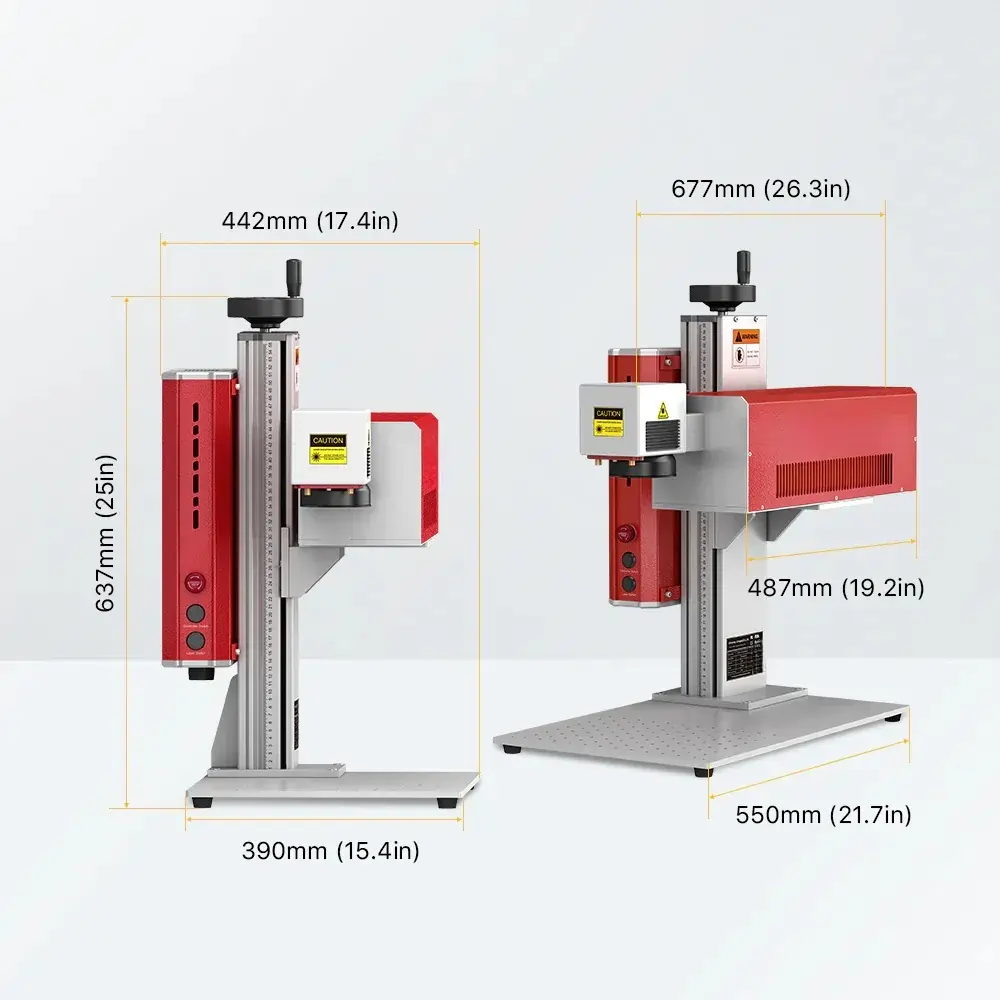

Package Dimensions: 96*54*56cm
Package Weight: 58kg
Fast Global Shipping: DHL / UPS
Lifespan: Around 20,000 hours
Warranty: 2 Year Warranty
Certifications: FDA Compliant & CE Certification

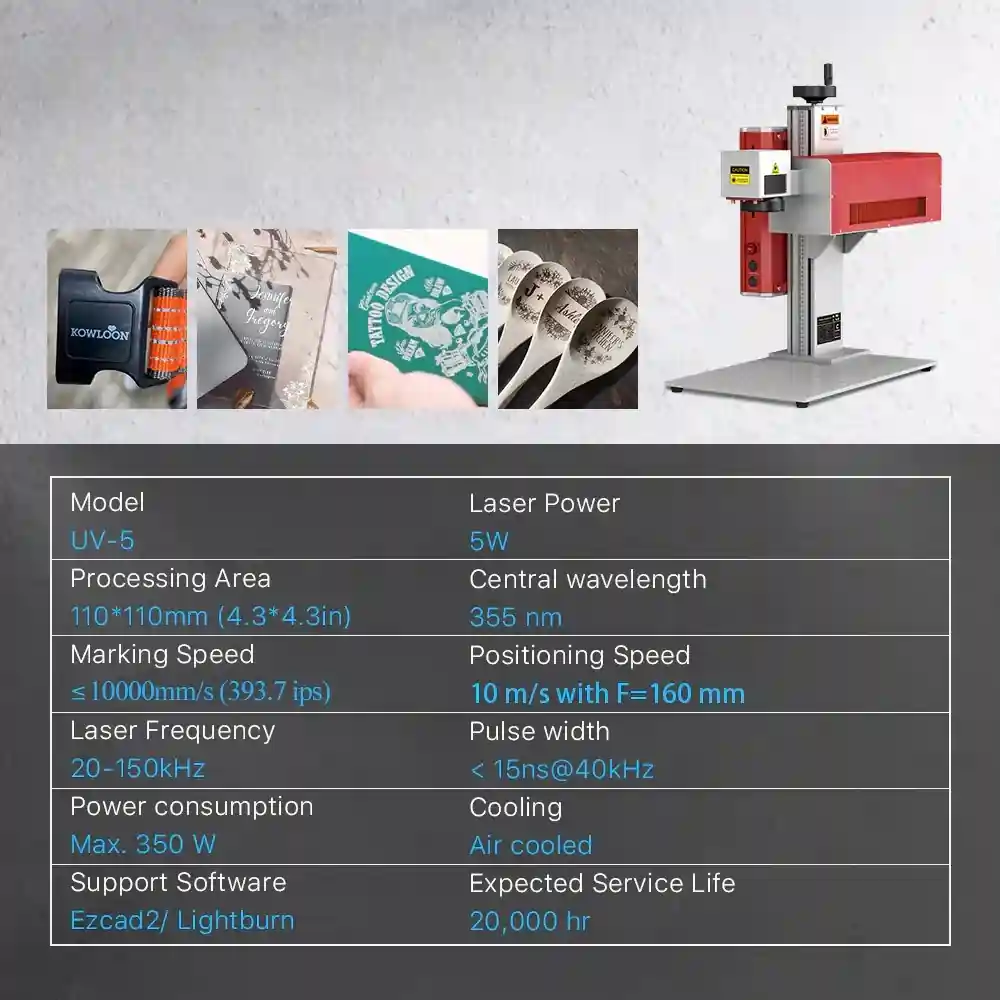

Specifications

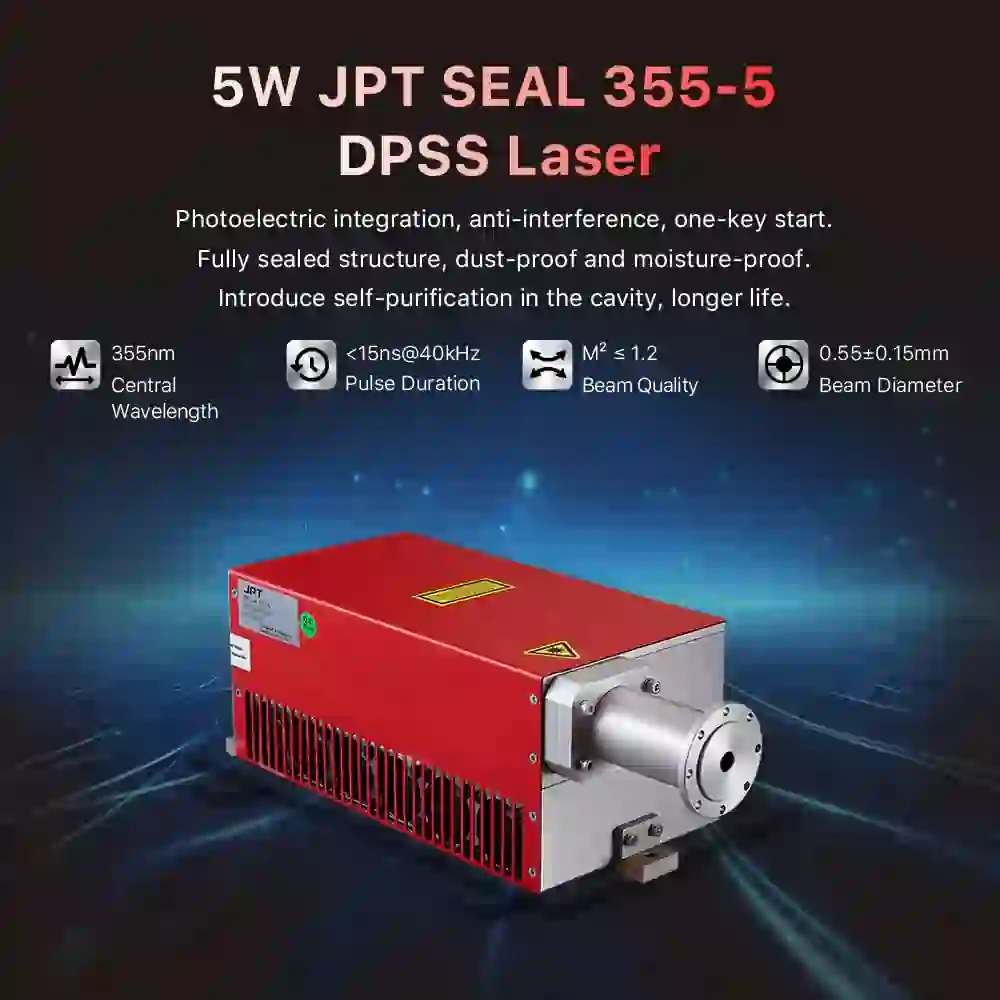

Output Power	Laser Frequency	Pulse Duration
5W	20-150 kHz	<15ns@40kHz
Central wavelength	Processing Area	Max. Marking Speed
355 nm	110 x 110 mm (4.3 x 4.3 in)	10000mm/s (393.7 ips)
Beam Diameter	Beam Quality	Average Power Consumption
Non-expanding: 0.55±0.15mm	M² ≤ 1.2	＜350W
Expected Service Life (MTTF)	Support Operating Software	Compatible Operating Systems
20,000 hr	EZCAD2/ Lightburn	Windows XP, Vista, 7, 8, or 10

YOU CAN ENGRAVE THESE MATERIALS

🟡Glass	🟡Wood	🟡Paper	🟡Rubber	🟡Leather
🟡Building Ceramics	🟡PVC	🟡Acrylic	🟡Bamboo Products	🟡ABS

*Non-Metallic Materials And Some Metal Products

Application Cases:

Cosmetics, Drugs, Food, and other Macro-molecule material packaging surface, Flexible PCB, LCD Glass QR Code, Metal Surface Coating, Plastic Keys, Electronic Components Gifts, Communication Equipment, Construction Materials, etc

Application:

UV laser is very different from CO2 laser and fiber laser. UV laser is also known as a blue laser beam, which can be engraved with low heat. The light wave or ultraviolet spectrum of the UV laser marking machine is one of the main reasons that this technology can be engraved on different materials. It does not heat the surface of the material like fiber laser and CO2 laser marking machines.

Unique Low-Power Laser Beam and Smaller Focusing Spot, No Thermal Effect, Prevent Material Deformation, Damage or Scorching.

1. Packaging Inkjet Coding, such as Cosmetics, Medicines, Food, and other Macro-molecule material packaging surface;
2. 3C Industry, Mobile phones, Keyboards, Chargers etc
3. Industry Processing: Electronic Components, such as Chips, Circuit Board, etc; LED Lineation and Silicon Processing
4. Electrical appliance housing marking
5. Metal or Non-metal Coating Removal
6. Scribing and blind groove processing of various materials
7. New ultra-thin metal foil micro-hole production
8. Glass products marking and engraving etc.
9. Engraving and marking of all plastics
10. Paper marking; Leather marking and graving; Wood Marking; Garment marking; Ceramic marking
